CENTRIFGUAL PUMP
Showing all 8 results
-
CENTRIFGUAL PUMP

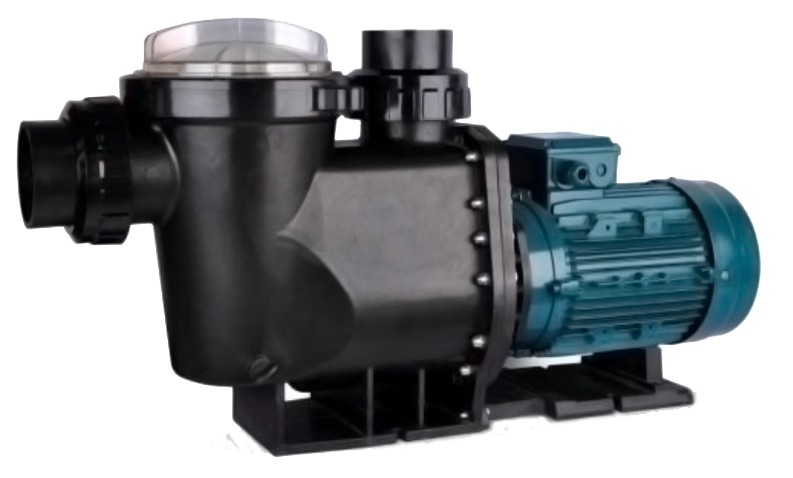

CENTRIFUGAL PLASTIC ELECTRIC PUMPS FOR POOLS – VPP – VPPL
VPP – VPPL Series pumps are unmatched in performance and versatility, in the 63mm and 90mm. class from 1.1 kW through 11kW . The Series offers a variety of power and electrical options, which enable you to provide the right solution for a range of applications.
SKU: n/a -
CENTRIFGUAL PUMP

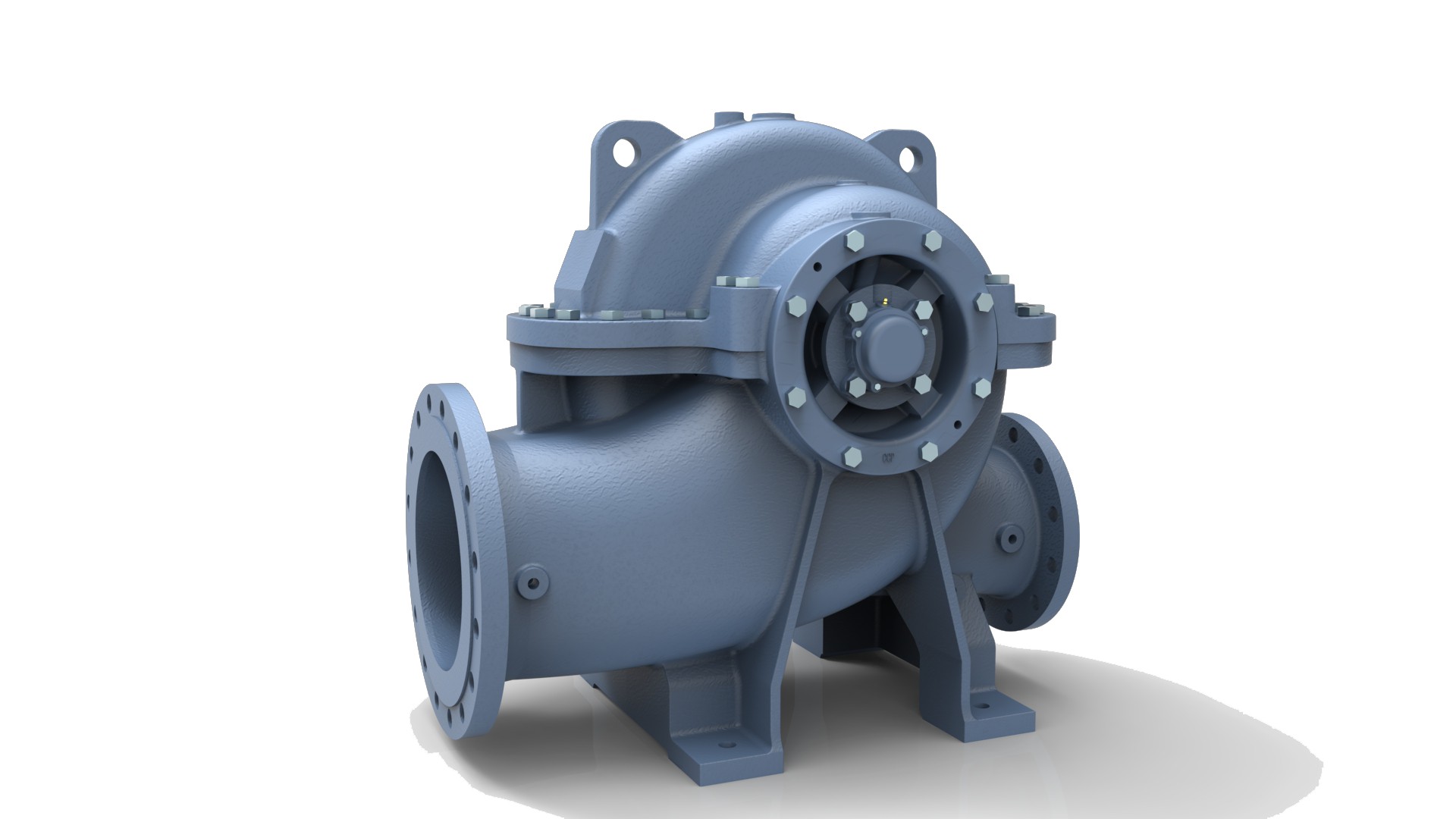

HORIZONTAL SPLIT CASING PUMP – VSN
Using the latest technology, VINCI pump engineered the VSN series pump to accommodate a variety of applications. The single-stage, double suction, horizontal split case pump comes in many different hydraulic configurations and variety pump sizes. Discharge sizes range from DN80 to DN800. The VSN has a wide selection of hydraulic performance envelopes, multiple mechanical configurations and several material options.
SKU: n/a -
CENTRIFGUAL PUMP

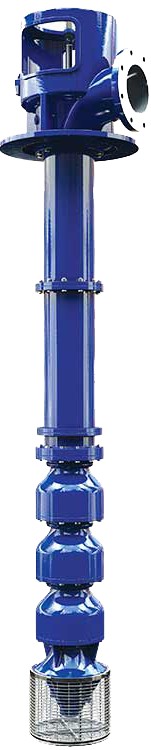

VERTICAL TURBINE PUMP – VTP
Vertical turbine pumps (VTP) with submerged pump bowl, lineshaft and drive unit on the surface, for installation in deep wells or tanks. Featuring an extremely solid and reliable construction design, they ensure great flexibility in application. The technical characteristics and broad range of versions make this series ideal for pumping services in the sectors of water supply, industry, private and consortium irrigation and in fire-fighting systems. These machines can be controlled both by electric motors and diesel engines and they ensure unequalled service efficiency.
SKU: n/a -
CENTRIFGUAL PUMP

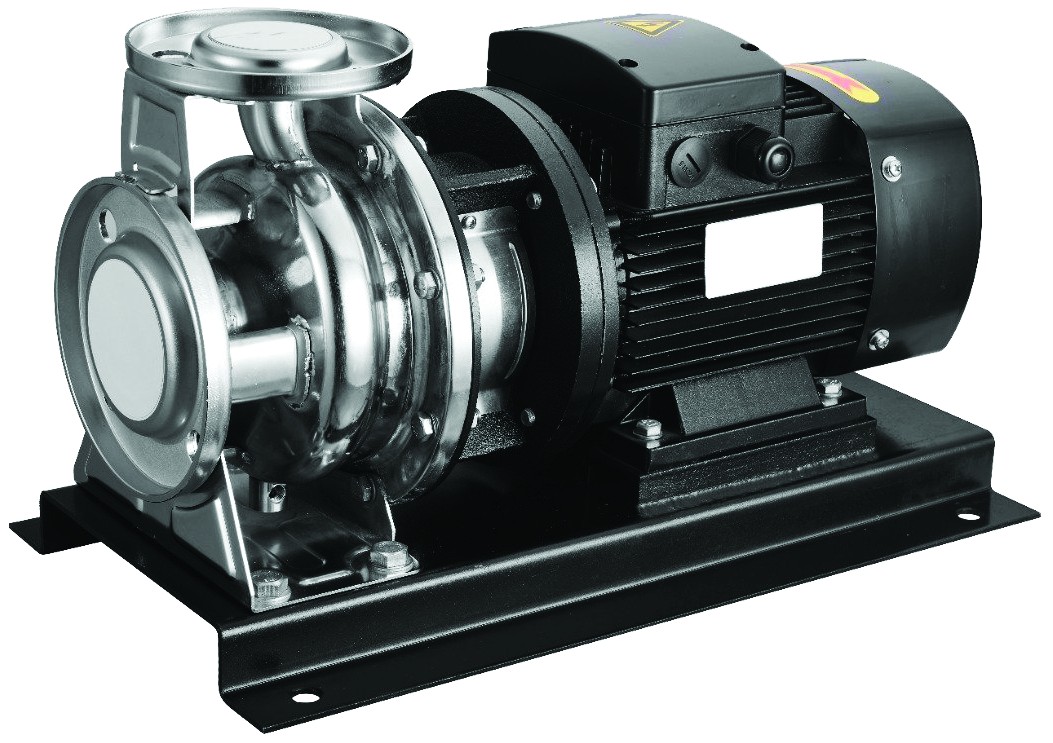

VMD/VMC – Close-Coupled Centrifugal Pump
VINCI close-coupled centrifugal pump with AISI 304 and AISI 316 steel impeller, axial suction and radial discharge with 2 or 4 poles motors.
TECHNICAL DATA Model VMD/VMC Capacity 0-200 m3 /h Head 0-70m Flange DN32-80 Speed 2900 rpm Max temperature 100 ℃ Power 1.1-37 kW Casing Cast iron/AISI 304/316 Impeller AISI 304/316 Shaft seal Mechanical Seal Bearing Grease lubrication rolling bearing Motor 380V/50Hz/IE3 SKU: n/a -
CENTRIFGUAL PUMP

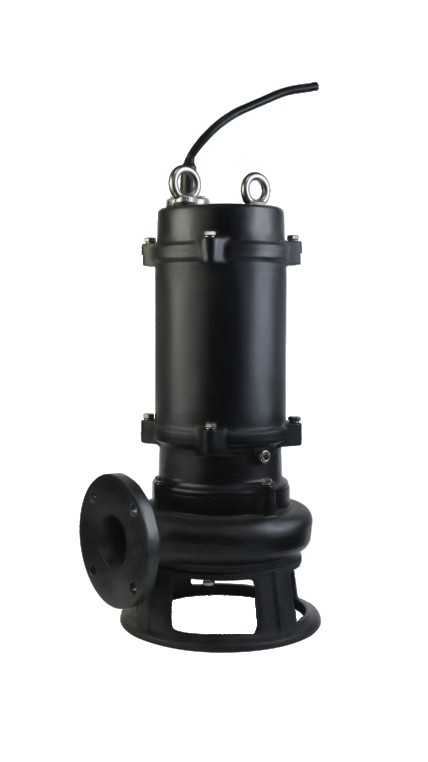

VQ/VQW/VQF – Submersible Cutter Pump
VINCI VQ-series pumps are heavy-duty, submersible cutter pumps for sewage and wastewater, which are made of castings and equipped with cutting mechanism.
TECHNICAL DATA Model VQ/VQW/VQF Capacity 10-3550 m3/h Head 0-60m Flange DN40-600 Speed 1450-2950 rpm Max temperature 100 ℃ Power 1.1-110 kW Casing Cast iron/AISI 304/316 Impeller Cast iron/AISI 304/316 Shaft seal Mechanical Seal Bearing Ball bearing Motor 380V/50Hz/IP68 SKU: n/a -
CENTRIFGUAL PUMP

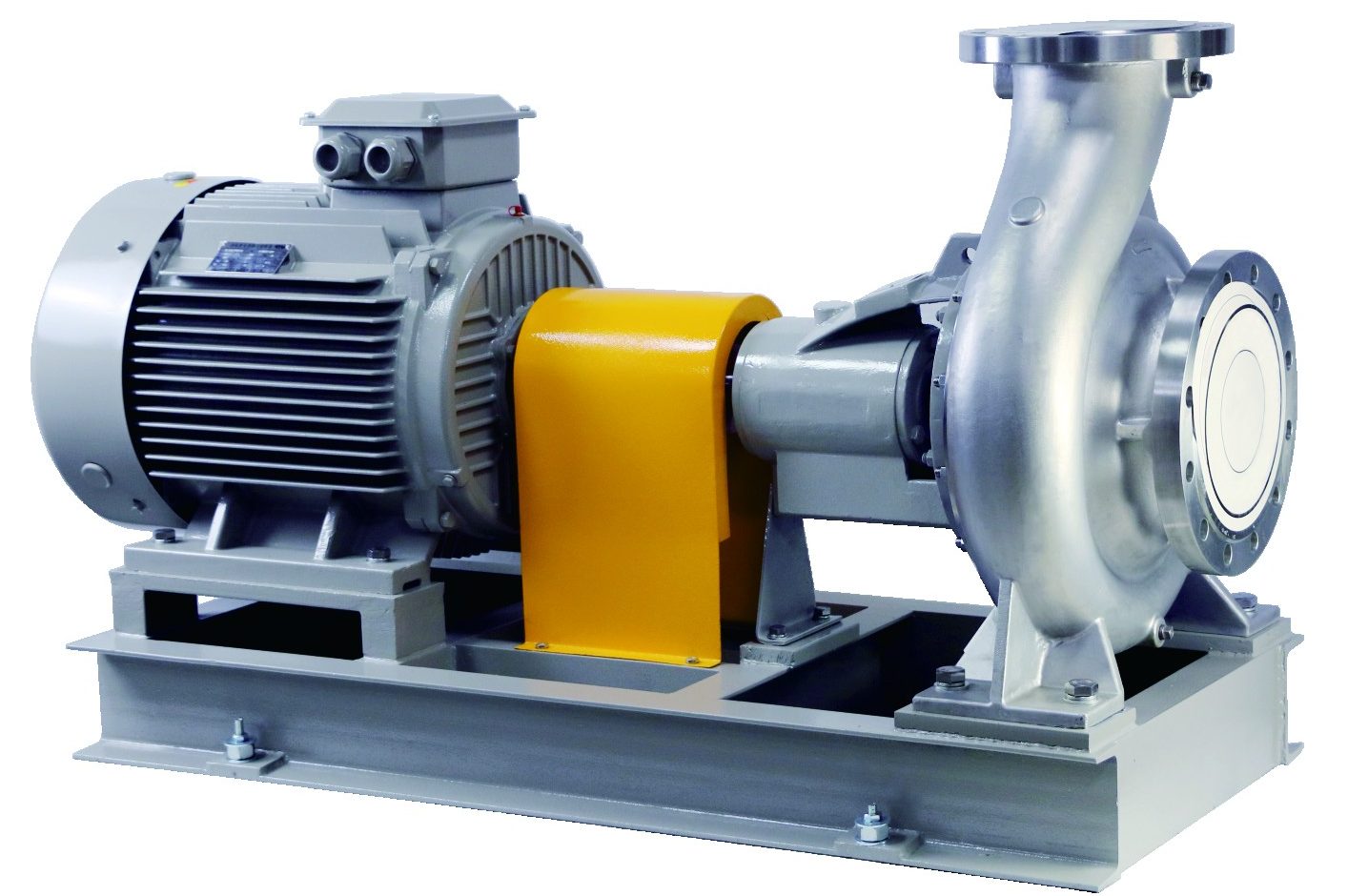

VS/VSS – End-Suction Centrifugal Pump
Standardized single-stage cast iron centrifugal pump and electric pump which combines the best technical and performance features in a single solution.
TECHNICAL DATA Model VS/VSS Capacity 0-1500 m3 /h Head 0-150 m Flange DN 32-300 Speed 1450-2900 rpm Max temperature 105 ℃ Power 1.5-315 kW Casing Cast iron/AISI 304 Impeller AISI 304/Brass Shaft seal Mechanical Seal Bearing Grease lubrication rolling bearing Motor 380V/50Hz/IE3 SKU: n/a -
CENTRIFGUAL PUMP

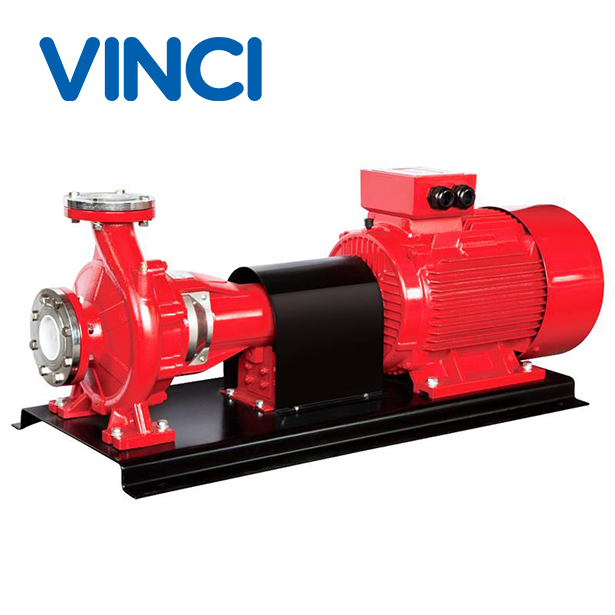

VSM – End Suction Fire Pump
VINCI end suction centrifugal pump constructed to NFPA20 standards; widely used in water supply, pressurization and fire-fighting systems. The pump is standard supplied with counter-flange kit.
TECHNICAL DATA Model VSM Capacity 0-1000 m3 /h Head 0-164 m Flange DN 32-150 Speed 2900 rpm Max temperature 120 ℃ Power 1.5-315 kW Casing Cast iron Impeller AISI 304/Brass Shaft seal Mechanical Seal Bearing Grease lubrication rolling bearing Motor 380V/50Hz/IE3 SKU: n/a -
CENTRIFGUAL PUMP

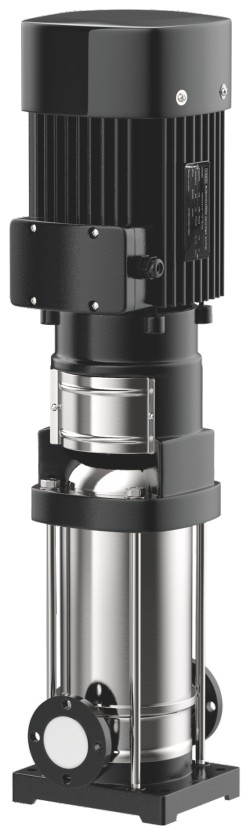

VVM/VVMT – Vertical Multistage Centrifugal Pump
VINCI VVM/VVMT vertical, multistage, centrifugal in-line pump family works for water supply, water treatment and almost any industrial solution – including those for high-pressure, hot, dangerous, flammable and aggressive liquids.
TECHNICAL DATA Model VVM/VVMT Capacity 0-200 m3 /h Head 0-300m Flange DN25-200 Speed 2900 rpm Max temperature 100 ℃ Power 1.1-110 kW Casing Cast iron/AISI 304/316 Impeller AISI 304/316 Shaft seal Mechanical Seal Bearing Grease lubrication rolling bearing Motor 380V/50Hz/IE3 SKU: n/a
