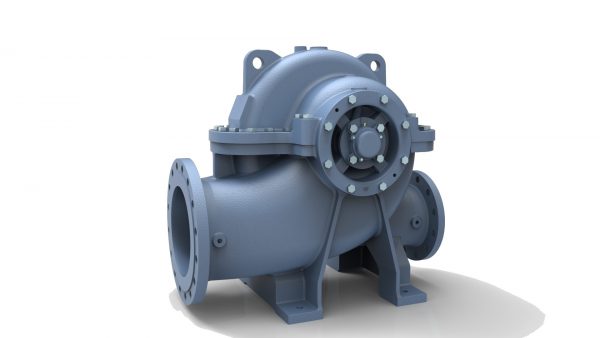

Using the latest technology, VINCI pump engineered the VSN series pump to accommodate a variety of applications. The single-stage, double suction, horizontal split case pump comes in many different hydraulic configurations and variety pump sizes. Discharge sizes range from DN80 to DN800. The VSN has a wide selection of hydraulic performance envelopes, multiple mechanical configurations and several material options.
APPLICATIONS
SPECS
VINCI VVM/VVMT vertical, multistage, centrifugal in-line pump family works for water supply, water treatment and almost any industrial solution – including those for high-pressure, hot, dangerous, flammable and aggressive liquids.
| TECHNICAL DATA | |
|---|---|
| Model | VVM/VVMT |
| Capacity | 0-200 m3 /h |
| Head | 0-300m |
| Flange | DN25-200 |
| Speed | 2900 rpm |
| Max temperature | 100 ℃ |
| Power | 1.1-110 kW |
| Casing | Cast iron/AISI 304/316 |
| Impeller | AISI 304/316 |
| Shaft seal | Mechanical Seal |
| Bearing | Grease lubrication rolling bearing |
| Motor | 380V/50Hz/IE3 |
VINCI VQ-series pumps are heavy-duty, submersible cutter pumps for sewage and wastewater, which are made of castings and equipped with cutting mechanism.
| TECHNICAL DATA | |
|---|---|
| Model | VQ/VQW/VQF |
| Capacity | 10-3550 m3/h |
| Head | 0-60m |
| Flange | DN40-600 |
| Speed | 1450-2950 rpm |
| Max temperature | 100 ℃ |
| Power | 1.1-110 kW |
| Casing | Cast iron/AISI 304/316 |
| Impeller | Cast iron/AISI 304/316 |
| Shaft seal | Mechanical Seal |
| Bearing | Ball bearing |
| Motor | 380V/50Hz/IP68 |
Standardized single-stage cast iron centrifugal pump and electric pump which combines the best technical and performance features in a single solution.
| TECHNICAL DATA | |
|---|---|
| Model | VS/VSS |
| Capacity | 0-1500 m3 /h |
| Head | 0-150 m |
| Flange | DN 32-300 |
| Speed | 1450-2900 rpm |
| Max temperature | 105 ℃ |
| Power | 1.5-315 kW |
| Casing | Cast iron/AISI 304 |
| Impeller | AISI 304/Brass |
| Shaft seal | Mechanical Seal |
| Bearing | Grease lubrication rolling bearing |
| Motor | 380V/50Hz/IE3 |
VPP – VPPL Series pumps are unmatched in performance and versatility, in the 63mm and 90mm. class from 1.1 kW through 11kW . The Series offers a variety of power and electrical options, which enable you to provide the right solution for a range of applications.
Vertical turbine pumps (VTP) with submerged pump bowl, lineshaft and drive unit on the surface, for installation in deep wells or tanks. Featuring an extremely solid and reliable construction design, they ensure great flexibility in application. The technical characteristics and broad range of versions make this series ideal for pumping services in the sectors of water supply, industry, private and consortium irrigation and in fire-fighting systems. These machines can be controlled both by electric motors and diesel engines and they ensure unequalled service efficiency.
